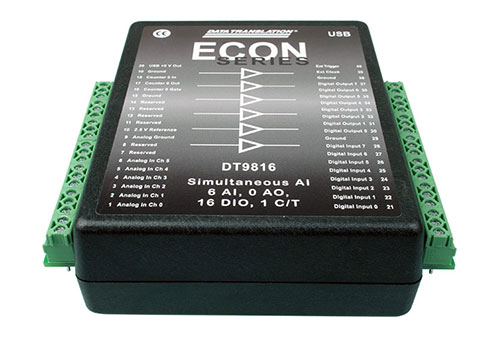

아날로그 입력 신호를 동시에 샘플링하여 얻을 수있는 모든 이점을 제공하는 차세대 USB 기반 데이터 수집 장치입니다. 개별 A/D 컨버터는 더 높은 대역폭으로 데이터를 수집하고, 채널 간 시간 스큐를 제거하고, 멀티플렉싱 된 고속 솔루션에 일반적인 채널 간 누화를 줄여 더 높은 소스 임피던스를 가능하게합니다.

• 6 개의 아날로그 입력 채널을 최대 50kHz, 150kHz 또는 750kHz 샘플링에서 선택 가능
• 16 비트 분해능
• 1 나노초 이내 동시 샘플링
• 더 높은 정확도를위한 10MOhm 입력 임피던스
• 16 개의 디지털 I / O 라인
• 1 카운터 / 타이머
• 여러 모듈을 동기화하기위한 외부 트리거 및 클록
• 모듈의 나사 단자에 신호를 직접 연결
• USB 통신을 통하여 전원 공급을 받음으로 외부 전원 공급이 필요하지 않음
• 즉시 사용 가능한 측정을위한 무료 QuickDAQ 데이터 로거 어플리케이션
• 공간 절약 치수 (LxWxH) 108mm x 100mm x 33.5mm

	DT9816-S 750 kHz simultaneous analog inputs
	6 Single-Ended inputs ±10V, ±5V 8 digital in, 8 digital out, 1 Counter/Timer
	DT9816-A 150 kHz simultaneous analog inputs
	6 Single-Ended inputs ±10V, ±5V 8 digital in, 8 digital out, 1 Counter/Timer
	DT9816 50 kHz simultaneous analog inputs
	6 Single-Ended inputs ±10V, ±5V 8 digital in, 8 digital out, 1 Counter/Timer

소프트웨어 링크

	QuickDAQ Free Data Logger Application - Upgradeable with FFT Analysis Options
	Two extensions add FFT analysis capabilities to the free base package. QuickDAQ FFT Analysis Options allow serious sound & vibration analysis supporting modal analysis and ODS analysis methods. Single-Channel and Dual-Channel (frequency response) FFT operations
	DT Data Acquisition Omni Software Application Software for Data Acquisition
	Device drivers for Windows 10 / 8.1 / 8 (64-bit and 32-bit), Windows 7 (64-bit and 32-bit), Windows Vista (64-bit and 32-bit) and Windows XP (32-bit only). The installation program automatically installs the appropriate driver for your operating system. DT-Open Layers for .NET - 32-bit and 64-bit native class library for all languages that conform to the Common Language Specification (CLS), including Visual C#, Visual Basic.NET, Visual C++.NET, Visual J#.NET, ... DT-Open Layers (DataAcq SDK) - Software Development Kit. A library of API functions in Microsoft C or C++. 32-bit and 64-bit native Windows support.
	DT-Open Layers Native .NET class library and Win32 DLL library
	Full support for Microsoft Visual Studio® 2005, 2008, 2010, and 2012. Built using managed code, virtually eliminating memory leaks. Easy configuration of all subsystem parameters.
	LV-Link Use DT USB and PCI data acquisition boards with NI LabVIEW™
	Create test and measurement applications for Data Translation DT-Open Layers compliant USB and PCI hardware using NI LabVIEW Consistent with the design and layout of the LabVIEW DAQmx VIs Measure and control analog I/O, digital I/O, quadrature decoders, counter/timer signals
	DAQ Adaptor for MATLAB® Interface to MATLAB
	Single environment for acquisition, analysis, and visualization. Measurement with the Data Acquisition Toolbox Direct access to all DT-Open Layers-compliant Data Translation USB and PCI modules.
	DASYLab Download our latest DASYLab drivers
	Create complex applications in minimal time without programming Lets you build worksheets using graphical functions Implements real-time operations, including PID control

White Papers

ENOB for DT9816-A This graph shows the outstanding quality of the DT9816-A for all error sources ... effective number of bits greater than 13.1 from all sources. Note the absence of harmonic content and digital switching noise across the full spectrum.  ENOB - Effective Number of Bits Overall Accuracy - The Accurate Way to Choose a Data Acquisition Board  Simultaneous Data Acquisition When choosing a data acquisition board, many different selection criteria are used. For many applications, a simultaneous acquisition device is certainly the architecture of choice due to its inherent speed and accuracy...  Understanding the SFDR Spec - The Battle for Data Fidelity As A/D converters and data acquisition boards increase their bandwidth, more and more are including the spurious free dynamic range (SFDR) specification as an indicator of their fidelity...  Design Advantages
