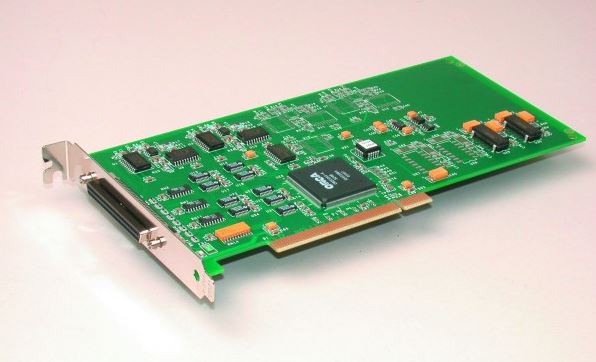

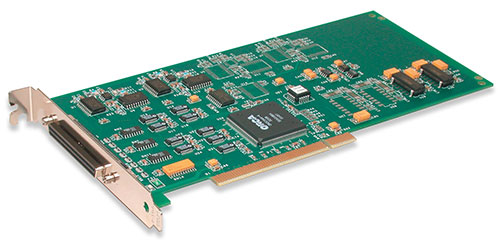

프로그래밍 가능한 PCI 버스용 아날로그 출력 카드

DT330-Series 4개 또는 8개의 아날로그 출력

이 저가형 아날로그 출력 및 디지털 I/O 보드는 다중 D/A 출력 및 제어 기능이 필요한 애플리케이션에 이상적입니다.

± 10V 또는 0..10V의 정확한 파형 출력 또는 정적 출력.

다기능 시리즈 DT9818(최대 150kHz), DT9834(최대 500kHz), DT9836(최대 500kHz) 및 DT9862(최대 2MHz)에는 고성능 아날로그 파형 출력 옵션이 있습니다.

• 4개의 아날로그 출력, 12비트 분해능
• 8개의 아날로그 출력, 16비트 분해능
• PC 성능에 따른 샘플링 속도
• 32개의 디지털 I/O 라인, 8개의 입력 라인에 인터럽트 기능이 있음
• 반도체 릴레이(12mA)에 직접 연결 가능.

	DT331 (단종) Programmable Analog Output card with 12-Bit Resolution
	4 Programmable Analog Outputs Output Ranges: ±5V, ±10V, 0-5V, 0-10V
	DT334 (EOL 2024/09/30) Programmable Analog Output Card with 16-Bit Resolution
	8 Programmable Analog Outputs Output Range: ±10V

Drawings

Mechanical Drawing

	STP68-DIN DIN Rail Mountable Screw Terminal Panel
	Screw Terminal Panel for use with EP305 cable and DT300 series and DT3010-268 products Use with or without EN50022 DIN rail (35 mm) Dimensions (WxLxH): 63mm x 185mm x 48mm
	EP305 68-way cable for use with DT300 Series and DT330 Series
	For use with DT300 series and DT330 series Cable with overall screen Length: 2m

소프트웨어 링크

	DT Data Acquisition Omni Software Application Software for Data Acquisition
	Device drivers for Windows 10 / 8.1 / 8 (64-bit and 32-bit), Windows 7 (64-bit and 32-bit), Windows Vista (64-bit and 32-bit) and Windows XP (32-bit only). The installation program automatically installs the appropriate driver for your operating system. DT-Open Layers for .NET - 32-bit and 64-bit native class library for all languages that conform to the Common Language Specification (CLS), including Visual C#, Visual Basic.NET, Visual C++.NET, Visual J#.NET, ... DT-Open Layers (DataAcq SDK) - Software Development Kit. A library of API functions in Microsoft C or C++. 32-bit and 64-bit native Windows support.
	DT-Open Layers Native .NET class library and Win32 DLL library
	Full support for Microsoft Visual Studio® 2005, 2008, 2010, and 2012. Built using managed code, virtually eliminating memory leaks. Easy configuration of all subsystem parameters.
	LV-Link Use DT USB and PCI data acquisition boards with NI LabVIEW™
	Create test and measurement applications for Data Translation DT-Open Layers compliant USB and PCI hardware using NI LabVIEW Consistent with the design and layout of the LabVIEW DAQmx VIs Measure and control analog I/O, digital I/O, quadrature decoders, counter/timer signals
	DAQ Adaptor for MATLAB® Interface to MATLAB
	Single environment for acquisition, analysis, and visualization. Measurement with the Data Acquisition Toolbox Direct access to all DT-Open Layers-compliant Data Translation USB and PCI modules.
	DASYLab Download our latest DASYLab drivers
	Create complex applications in minimal time without programming Lets you build worksheets using graphical functions Implements real-time operations, including PID control
