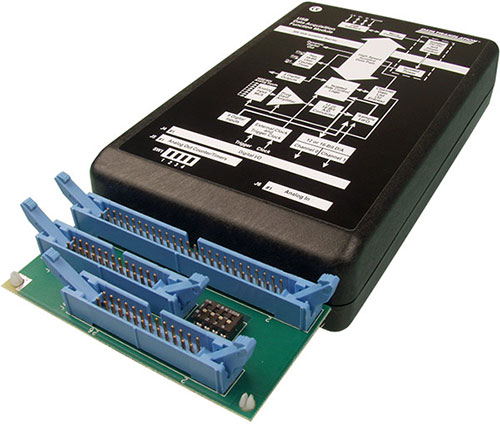

"Easy Connect" 커넥터가 있는 USB 측정 모듈
자신의 장치에 통합하기 위한 버전
DT9800 USB 데이터 수집 모듈은 다양한 측정 애플리케이션을 위한 실제 플러그 앤 플레이 편의성을 제공합니다. 현장이나 실험실에서 사용하기 위한 장치를 다루기 쉽습니다. 추가 전원 공급 장치가 필요하지 않으며 USB 케이블을 통해 DT9800을 PC 또는 노트북에 연결하기만 하면 됩니다. 즉시 사용 가능한 측정을 위한 무료 QuickDAQ 데이터 로거 애플리케이션이 포함되어 있습니다. .NET, NI LabVIEW, MATLAB, DASYLab, ...
- 16개의 단일 종단/8개의 차동 아날로그 입력
- 100kHz 전체 샘플링 속도
- 12/16비트 해상도
- IDC 헤더를 통한 신호 연결
- 2개의 아날로그 출력(옵션)
- "타임 스탬프" 기능이 있는 8개의 디지털 입력
- 8 디지털 출력
- 2 카운터/타이머(16비트)
- 프로그래밍 가능한 입력 및 출력 범위
- PC에서 500V 갈바닉 절연
- 외부 전원 공급 장치가 필요하지 않음
- 데이터와 전원을 위한 단 하나의 케이블
- 치수(가로x세로x높이): 200mm x 95mm x 35.5mm
|
| DT9801-EC-I (단종) USB Measurement Module | |
|
- 100 kHz overall sampling speed
- 12-bit Resolution
|
| DT9802-EC-I (단종) USB Measurement Module, with analog outputs | |
|
- 100 kHz overall sampling speed
- 12-bit Resolution
- 2 analog outputs 12-bit
|
| DT9803-EC-I (단종) USB Measurement Module | | |
- 100 kHz overall sampling speed
- 16-bit Resolution
|
| DT9804-EC-I (Contact the Sales Department) USB Measurement Module, with analog outputs | |
|
- 100 kHz overall sampling speed
- 16-bit Resolution
- 2 analog outputs 16-bit
|
소프트웨어 링크
|
| QuickDAQ Free Data Logger Application - Upgradeable with FFT Analysis Options
| |
|
- Two extensions add FFT analysis capabilities to the free base package.
- QuickDAQ FFT Analysis Options allow serious sound & vibration analysis supporting modal analysis and ODS analysis methods.
- Single-Channel and Dual-Channel (frequency response) FFT operations
|
| DT Data Acquisition Omni Software Application Software for Data Acquisition
| |
|
- Device drivers for Windows 10 / 8.1 / 8 (64-bit and 32-bit), Windows 7 (64-bit and 32-bit), Windows Vista (64-bit and 32-bit) and Windows XP (32-bit only). The installation program automatically installs the appropriate driver for your operating system.
- DT-Open Layers for .NET - 32-bit and 64-bit native class library for all languages that conform to the Common Language Specification (CLS), including Visual C#, Visual Basic.NET, Visual C++.NET, Visual J#.NET, ...
- DT-Open Layers (DataAcq SDK) - Software Development Kit. A library of API functions in Microsoft C or C++. 32-bit and 64-bit native Windows support.
|
| DT-Open Layers Native .NET class library and Win32 DLL library
| |
|
- Full support for Microsoft Visual Studio® 2005, 2008, 2010, and 2012.
- Built using managed code, virtually eliminating memory leaks.
- Easy configuration of all subsystem parameters.
|
| LV-Link Use DT USB and PCI data acquisition boards with NI LabVIEW™
| |
|
- Create test and measurement applications for Data Translation DT-Open Layers compliant USB and PCI hardware using NI LabVIEW
- Consistent with the design and layout of the LabVIEW DAQmx VIs
- Measure and control analog I/O, digital I/O, quadrature decoders, counter/timer signals
|
| DAQ Adaptor for MATLAB® Interface to MATLAB
| |
|
- Single environment for acquisition, analysis, and visualization.
- Measurement with the Data Acquisition Toolbox
- Direct access to all DT-Open Layers-compliant Data Translation USB and PCI modules.
|
| DASYLab Download our latest DASYLab drivers
| |
|
- Create complex applications in minimal time without programming
- Lets you build worksheets using graphical functions
- Implements real-time operations, including PID control
|
|
| DIN Rail Kit Conversion kit to enable DIN rail mounting (EN50022)
|
|
|
- For plastic enclosure versions of the DT9800 series and DT9828
- Complete set of parts for converting to DIN rail (35mm) mounting
|
| EP035 50-way Ribbon Cable
| |
|
- For interfacing to DT9800-EC-I Series and DT335-50
- Length: 2 metres
|
