DT9834 - 고속 USB 다기능 측정 모듈

DT9834는 일련의 고속, 고성능 USB 데이터 수집(DAQ) 모듈입니다. 이 USB DAQ 모듈은 다양한 구성으로 제공되므로 애플리케이션에 적합한 패키징을 선택할 수 있습니다.

• 16 SE(단일 종단) / 8 DI(차동) 아날로그 입력
• 500kHz 전체 샘플링 속도, 16비트 분해능
• 500kHz에서 샘플링된 4개의 아날로그 출력(옵션)
• 최대 ±10V의 프로그래밍 가능한 입력 및 출력 범위
• 16개의 디지털 입력 - 아날로그 입력과 동기화
• 변경 시 인터럽트가 있는 8개의 디지털 라인
• 16개의 디지털 출력 - 아날로그 출력과 동기화
• 1개의 동적 디지털 출력 - 아날로그 입력과 동기화됨
• 5 카운터/타이머(32비트) - 아날로그 입력과 동기화됩니다.
• 업다운 카운터, 연속 주기 측정
• PC에서 500V 갈바닉 절연
• 두 가지 구성을 사용할 수 있습니다. OEM 보드로 사용하거나 BNC 연결이 있는 인클로저에 장착할 수 있습니다.
• OEM 버전(LxW): 190mm x 100mm
• BNC-박스(가로x가로x높이): 216mm x 106mm x 50mm

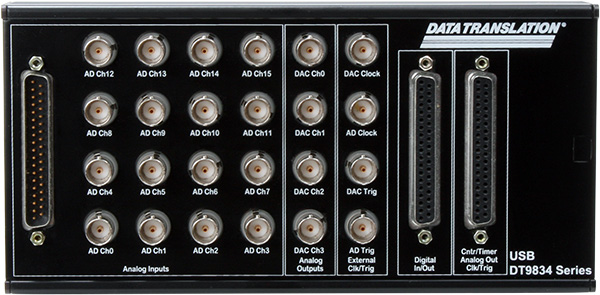

	DT9834-16-4-16-BNC USB Data Acquisition in an Enclosure with BNC Connections
	16 SE analog inputs on BNC Includes EP361 power supply
	DT9834-16-4-16-OEM OEM Embedded Version
	16 SE / 8 DI analog inputs 16-Bit Resolution
	DT9834-16-0-16-OEM (단종,DT9836 으로 대체) 16-Channels OEM Embedded Version
	16 SE / 8 DI analog inputs 16-Bit Resolution

Images

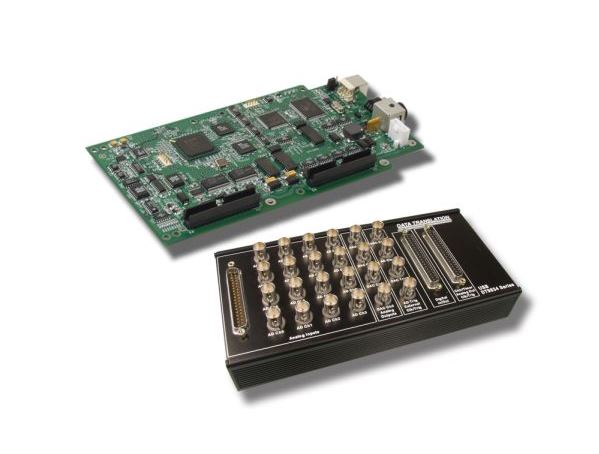

BNC-Box with 16 SE Inputs  Embedded OEM board  Embedded OEM board with EP355

Drawings

Mechanical Drawing  Enclosure Dimensions

White Papers

ENOB for DT9834  ENOB - Effective Number of Bits Overall Accuracy - The Accurate Way to Choose a Data Acquisition Board

More Downloads

MATLAB example for DT9834 This example uses a DT9834 to stream a bit pattern out the digital output port via the analog output channel list. Requires DAQ Adaptor for MATLAB v1.0.10.22 or greater.

소프트웨어 지원

	QuickDAQ Free Data Logger Application - Upgradeable with FFT Analysis Options
	Two extensions add FFT analysis capabilities to the free base package. QuickDAQ FFT Analysis Options allow serious sound & vibration analysis supporting modal analysis and ODS analysis methods. Single-Channel and Dual-Channel (frequency response) FFT operations
	DT Data Acquisition Omni Software Application Software for Data Acquisition
	Device drivers for Windows 10 / 8.1 / 8 (64-bit and 32-bit), Windows 7 (64-bit and 32-bit), Windows Vista (64-bit and 32-bit) and Windows XP (32-bit only). The installation program automatically installs the appropriate driver for your operating system. DT-Open Layers for .NET - 32-bit and 64-bit native class library for all languages that conform to the Common Language Specification (CLS), including Visual C#, Visual Basic.NET, Visual C++.NET, Visual J#.NET, ... DT-Open Layers (DataAcq SDK) - Software Development Kit. A library of API functions in Microsoft C or C++. 32-bit and 64-bit native Windows support.
	DT-Open Layers Native .NET class library and Win32 DLL library
	Full support for Microsoft Visual Studio® 2005, 2008, 2010, and 2012. Built using managed code, virtually eliminating memory leaks. Easy configuration of all subsystem parameters.
	DAQ Adaptor for MATLAB® Interface to MATLAB
	Single environment for acquisition, analysis, and visualization. Measurement with the Data Acquisition Toolbox Direct access to all DT-Open Layers-compliant Data Translation USB and PCI modules.
	LV-Link Use DT USB and PCI data acquisition boards with NI LabVIEW™
	Create test and measurement applications for Data Translation DT-Open Layers compliant USB and PCI hardware using NI LabVIEW Consistent with the design and layout of the LabVIEW DAQmx VIs Measure and control analog I/O, digital I/O, quadrature decoders, counter/timer signals
	DASYLab Download our latest DASYLab drivers
	Create complex applications in minimal time without programming Lets you build worksheets using graphical functions Implements real-time operations, including PID control
