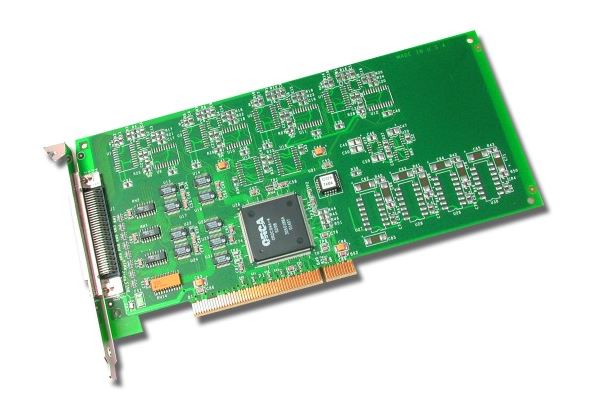

DT335 시리즈 (PCI 디지털 I/O 보드)

DT335 시리즈 (PCI 디지털 I/O 보드)

- 32 TTL 레벨 디지털 I/O 라인 - 변경 시 인터럽트가 가능한 8개의 입력 라인 - 입력 또는 출력으로 프로그래밍 가능한 8비트 워드 - 필드 신호 배선용 68-way 커넥터
  • 상세 설명

PCI 버스용 디지털 I/O 카드


PCI 버스용 저가형 디지털 I/O 보드는 제어 기능이 필요한 애플리케이션에 이상적입니다.

  • 32 TTL 레벨 디지털 I/O 라인
  • 변경 시 인터럽트가 가능한 8개의 입력 라인
  • 입력 또는 출력으로 프로그래밍 가능한 8비트 워드
  • 필드 신호 배선용 68-way 커넥터



32-channel Digital I/O card (TTL)DT335 (단종)
32-channel Digital I/O card (TTL)


    Images
    Show file DT335
    Drawings
    Show file Mechanical Drawing

    악세서리


    DIN Rail Mountable Screw Terminal PanelSTP68-DIN
    DIN Rail Mountable Screw Terminal Panel

    • Screw Terminal Panel for use with EP305 cable and DT300 series and DT3010-268 products
    • Use with or without EN50022 DIN rail (35 mm)
    • Dimensions (WxLxH): 63mm x 185mm x 48mm

    68-way cable for use with DT300 Series and DT330 SeriesEP305
    68-way cable for use with DT300 Series and DT330 Series

    • For use with DT300 series and DT330 series
    • Cable with overall screen
    • Length: 2m


    소프트웨어 링크


    Free Data Logger Application - Upgradeable with FFT Analysis OptionsQuickDAQ
    Free Data Logger Application - Upgradeable with FFT Analysis Options
    • Two extensions add FFT analysis capabilities to the free base package.
    • QuickDAQ FFT Analysis Options allow serious sound & vibration analysis supporting modal analysis and ODS analysis methods.
    • Single-Channel and Dual-Channel (frequency response) FFT operations

    Application Software for Data AcquisitionDT Data Acquisition Omni Software
    Application Software for Data Acquisition
    • Device drivers for Windows 10 / 8.1 / 8 (64-bit and 32-bit), Windows 7 (64-bit and 32-bit), Windows Vista (64-bit and 32-bit) and Windows XP (32-bit only). The installation program automatically installs the appropriate driver for your operating system.
    • DT-Open Layers for .NET - 32-bit and 64-bit native class library for all languages that conform to the Common Language Specification (CLS), including Visual C#, Visual Basic.NET, Visual C++.NET, Visual J#.NET, ...
    • DT-Open Layers (DataAcq SDK) - Software Development Kit. A library of API functions in Microsoft C or C++. 32-bit and 64-bit native Windows support.

    Native .NET class library and Win32 DLL libraryDT-Open Layers
    Native .NET class library and Win32 DLL library
    • Full support for Microsoft Visual Studio® 2005, 2008, 2010, and 2012.
    • Built using managed code, virtually eliminating memory leaks.
    • Easy configuration of all subsystem parameters.

    Use DT USB and PCI data acquisition boards with NI LabVIEW™LV-Link
    Use DT USB and PCI data acquisition boards with NI LabVIEW™
    • Create test and measurement applications for Data Translation DT-Open Layers compliant USB and PCI hardware using NI LabVIEW
    • Consistent with the design and layout of the LabVIEW DAQmx VIs
    • Measure and control analog I/O, digital I/O, quadrature decoders, counter/timer signals

    Interface to MATLABDAQ Adaptor for MATLAB®
    Interface to MATLAB
    • Single environment for acquisition, analysis, and visualization.
    • Measurement with the Data Acquisition Toolbox
    • Direct access to all DT-Open Layers-compliant Data Translation USB and PCI modules.

    Download our latest DASYLab drivers DASYLab
    Download our latest DASYLab drivers
    • Create complex applications in minimal time without programming
    • Lets you build worksheets using graphical functions
    • Implements real-time operations, including PID control
